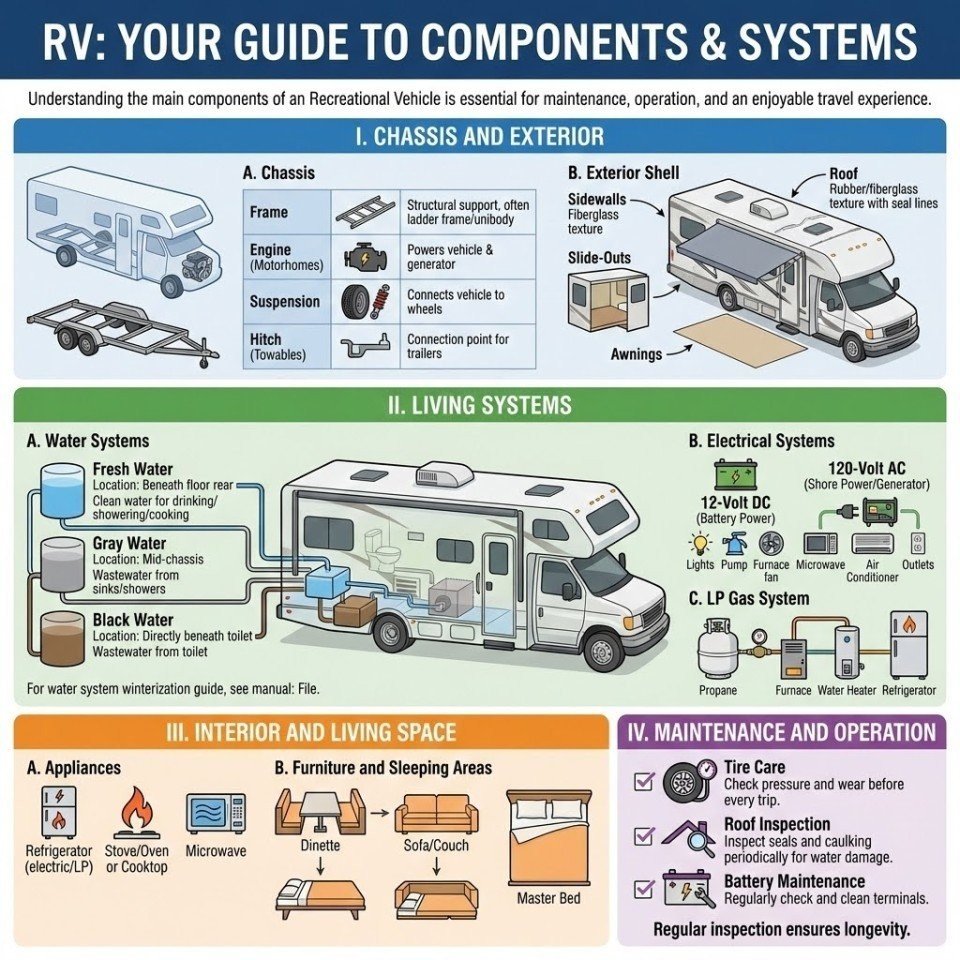

Key Components of an RV

A Recreational Vehicle (RV) is a motor vehicle or towable trailer that includes living quarters designed for accommodation. Understanding the main components of an RV is essential for maintenance, operation, and an enjoyable travel experience.

I. Chassis and Exterior

The foundation and protective shell of the RV.

A. Chassis

This component provides the structural base for motorhomes, similar to a vehicle's frame.

Component	Description
Frame	The structural support, often a ladder frame or unibody construction
Engine (Motorhomes)	Powers the vehicle and often the onboard generator
Suspension	System of tires, springs, and shock absorbers that connects the vehicle to its wheels
Hitch (Towables)	The connection point between the trailer and the tow vehicle

B. Exterior Shell

The exterior protects the living space from the elements.

• Sidewalls: Constructed from materials like fiberglass, aluminum, or wood composite.
• Roof: Essential for weatherproofing; common materials include rubber, fiberglass, or aluminum.
• Slide-Outs: Expanding sections of the RV that significantly increase the living space when parked.
• Awnings: Retractable shades that provide cover and extend the usable outdoor space.

II. Living Systems

These systems provide the necessary utilities for comfortable living.

A. Water Systems

RVs operate using three primary water tanks.

Tank Type	Purpose	Placeholder for Location
Fresh Water	Holds clean water for drinking, showering, and cooking	Located beneath the floor near the rear
Gray Water	Holds wastewater from sinks and showers	Located mid-chassis
Black Water	Holds wastewater from the toilet	Located directly beneath the toilet

For a complete guide on water system winterization, please check out the manual: File.

B. Electrical Systems

The RV uses a dual-voltage system for power.

• 12-Volt DC System (Battery Power): Runs essential items like lights, water pump, and furnace fan. Charged by the engine, solar panels, or a converter.
• 120-Volt AC System (Shore Power/Generator): Runs household appliances like the microwave, air conditioner, and outlets. Requires connection to an external power source (shore power) or the onboard generator.

C. LP Gas System

Liquid Petroleum (LP) gas, or propane, is used for heating and cooking.

• Components: LP tank, regulator, and gas lines.
• Appliances: The furnace, water heater, and refrigerator (absorption-style) often run on LP gas.

III. Interior and Living Space

This includes the furnishings and appliances that make the RV a home on the road.

A. Appliances

Most RVs include compact versions of standard household appliances.

• Refrigerator (Often runs on electric or LP gas)
• Stove/Oven or Cooktop
• Microwave

B. Furniture and Sleeping Areas

The interior is designed to maximize space efficiency.

• Dinette: Often converts into a bed.
• Sofa/Couch: May also convert into a sleeping area.
• Master Bed: Dedicated sleeping area, typically a full or queen size.

IV. Maintenance and Operation

Regular inspection and care ensure the longevity of the RV.

• Tire Care: Check tire pressure and wear before every trip.
• Roof Inspection: Inspect seals and caulking on the roof periodically to prevent water damage.
• Battery Maintenance: Regularly check and clean battery terminals.
