RV Tips: Slide-Out Operation

Operating the slide-outs on your Recreational Vehicle (RV) correctly is crucial for both safety and the longevity of your unit. This guide provides essential tips for proper slide-out use.

Pre-Operation Checklist

Before extending or retracting the slide-outs, always perform the following checks:

1. Leveling and Stability

The RV must be level and stable before operating the slide-outs. Operating the slides when the unit is unlevel can cause damage to the mechanisms and the frame.

• Ensure the RV is parked on a firm, level surface.
• Engage the parking brake.
• Activate the leveling system, if applicable, or use leveling blocks to achieve a level position.

2. Clearance and Obstructions

Check the area around the RV for any potential obstructions.

• Ensure there is ample space for the slide-out to fully extend without hitting trees, utility pedestals, or neighboring RVs at the site.
• Inside the RV, check that all items are clear of the slide-out path, including:
  • Cabinet doors
  • Chairs or furniture
  • Loose items on the floor

Operating the Slide-Outs

Always refer to your RV's specific owner's manual for precise instructions, but the general sequence is as follows:

Extending the Slide-Outs (Setting Up)

1. Engine/Ignition: Turn off the engine and ignition key, unless your specific model requires the ignition to be in the "Accessory" position.
2. Battery: Ensure the RV batteries are fully charged or the RV is connected to shore power. Most systems require a strong power source.
3. Operation: Press and hold the "EXTEND" button. Release the button immediately once the slide-out is fully extended and stops moving. Do not hold the button for an extended period after the slide has stopped.

Retracting the Slide-Outs (Breaking Camp)

Before traveling, all slide-outs must be fully retracted and secured.

1. Engine/Ignition: Ensure the engine is off and the parking brake is engaged.
2. Interior Check: Clear all interior items from the path. Secure or remove the slide locks, if applicable.
3. Operation: Press and hold the "RETRACT" button. Release the button immediately once the slide-out is fully retracted and stops moving.
4. Secure: Engage the slide locks (if equipped) to prevent movement while traveling to the next destination.

Troubleshooting and Maintenance

Proper maintenance will prevent costly repairs. If you encounter issues, consider the following:

Issue	Potential Cause	Action to Take
Slide doesn't move	Low battery power	Connect to shore power or run the generator.
Slide extends unevenly	Unlevel RV	Re-level the RV before continuing operation.
Grinding noise	Lack of lubrication	Lubricate the rails, gears, and rollers.
Motor is running but slide is stuck	Obstruction or lock engaged	Check for interior/exterior obstructions, ensure locks are disengaged.

It is recommended to schedule a check-up for the slide-out mechanisms every six months or before a major trip with your RV service provider.

Emergency Procedures

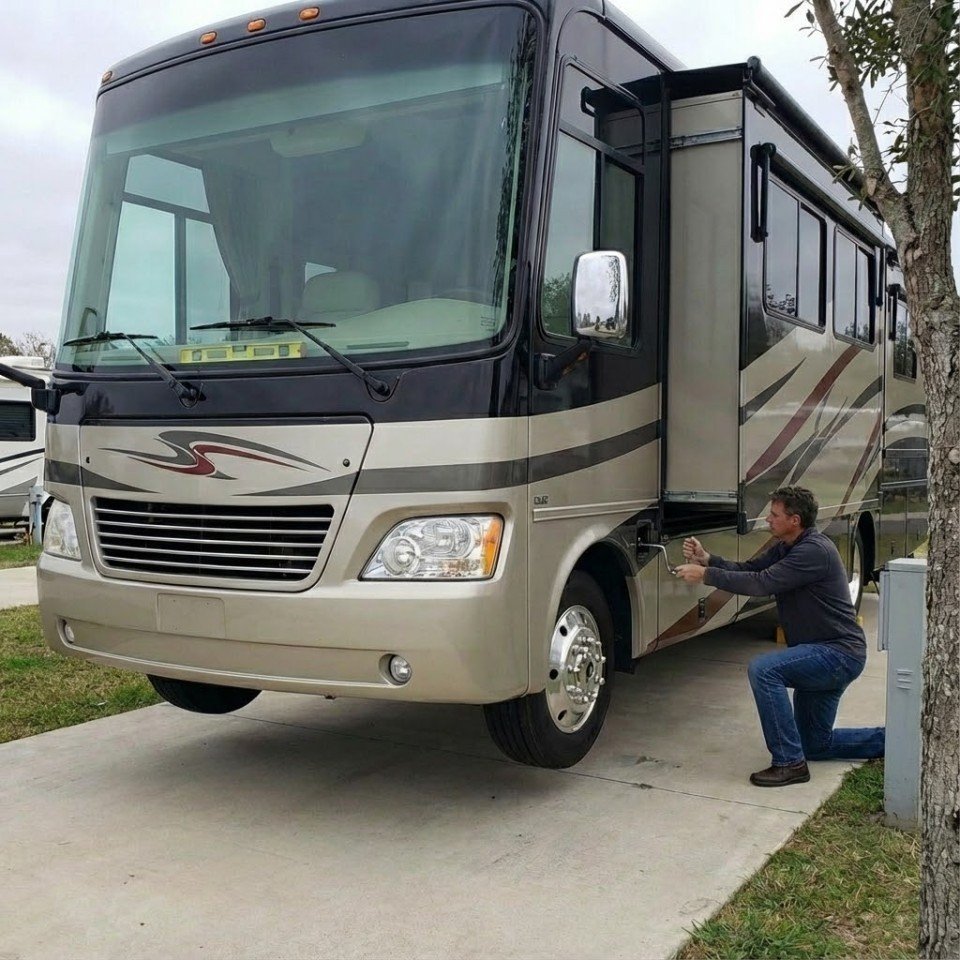

In case of a power failure or mechanical malfunction, most slide-outs have a manual override procedure. This typically involves using a hand crank or wrench to manually turn the motor.

• Locate the manual crank access point (usually in an exterior compartment).
• Use the appropriate tool to slowly move the slide-out.
• NOTE: Manually operating a large slide-out requires significant effort and is best performed with two people: one to crank and one to watch for alignment.
